Diamond Lift
Specs:
Lifting Capacity: 64,000 or 96,000 LB.
Lifting Height: 73" (1854.2mm)
Pit Depth: 72" (1828.8mm)
Travel Range: 10, 13 & 17'
Minimum Wheelbase: 62" (1574.8mm)
Lifting Time: 90 Sec.
Compressed Air Supply: Filtered/Regulated for 90 PSI at 5CFM
Electrical Supply: 3 Phase,208-230/460/575 V
Motor Power: 2x5 or 3x5 HP
Description:
Looking for optimum flexibility and maximum productivity? Stertil-Koni's state-of-the-art DIAMOND LIFT telescopic piston lift ingeniously combines both these features and sets a new benchmark for piston lifts. The highest level of safety is provided with third party testing and validation by ALI/ETL-Intertek. The result is a superior lifting solution grounded in decades of expertise and innovation.

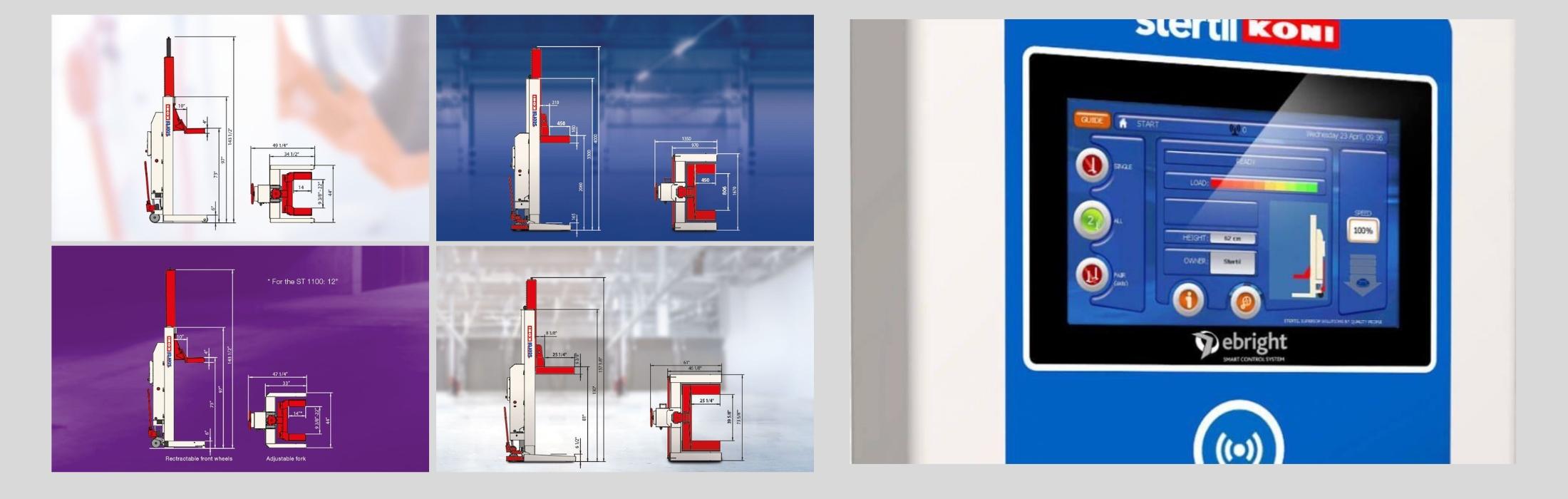

Earthlift eBright Mobile Column
Specs:
Lifting Capacity: 18,500 or 22,000 LB.
Lifting System: Hydraulic lifting system with microprocessor-controlled synchronization
Lifting Height: Maximum 73� (1854.2mm), automatic stop at the highest position
Lifting Time: 94 Sec.
Motor Rating: 3 HP. per Column
Weight: 1350 LB. per Column
Description:
Stertil-Koni EARTHLIFT column lift, uses the patented Active Energy Retrieval System. This provides you with an ecological, mobile wireless lifting solution for all of your heavy duty lifting requirements. Which other lift in the industry can achieve up to 50 lifting cycles without battery charging? You get optimum productivity in the workshop. No more expensive downtime because of battery charging!
EcoLift
Specs:
Lifting Capacity: 60,000 or 90,000 LB.
Lifting Height: 70" (1778mm)
Pit Depth: 34" (863.6mm)
Travel Range: 10,13,17'
Minimum Wheelbase: 72" (1828.8)
Lifting Time: 90 Sec.
Compressed Air Supply: Filtered/Regulated for 90 PSI at 5CFM
Electrical Supply: 208-230/460/575 V
Motor Power: 2x5 or 3x5 HP.
Description:
The Stertil-Koni ECOLIFT is the industrys first, U.S. patented, ultra-shallow, full-rise scissor in-ground lifting system. Manufactured in Streator, Illinois, ECOLIFT is safe, reliable and durable.
Mobile Column
Specs:

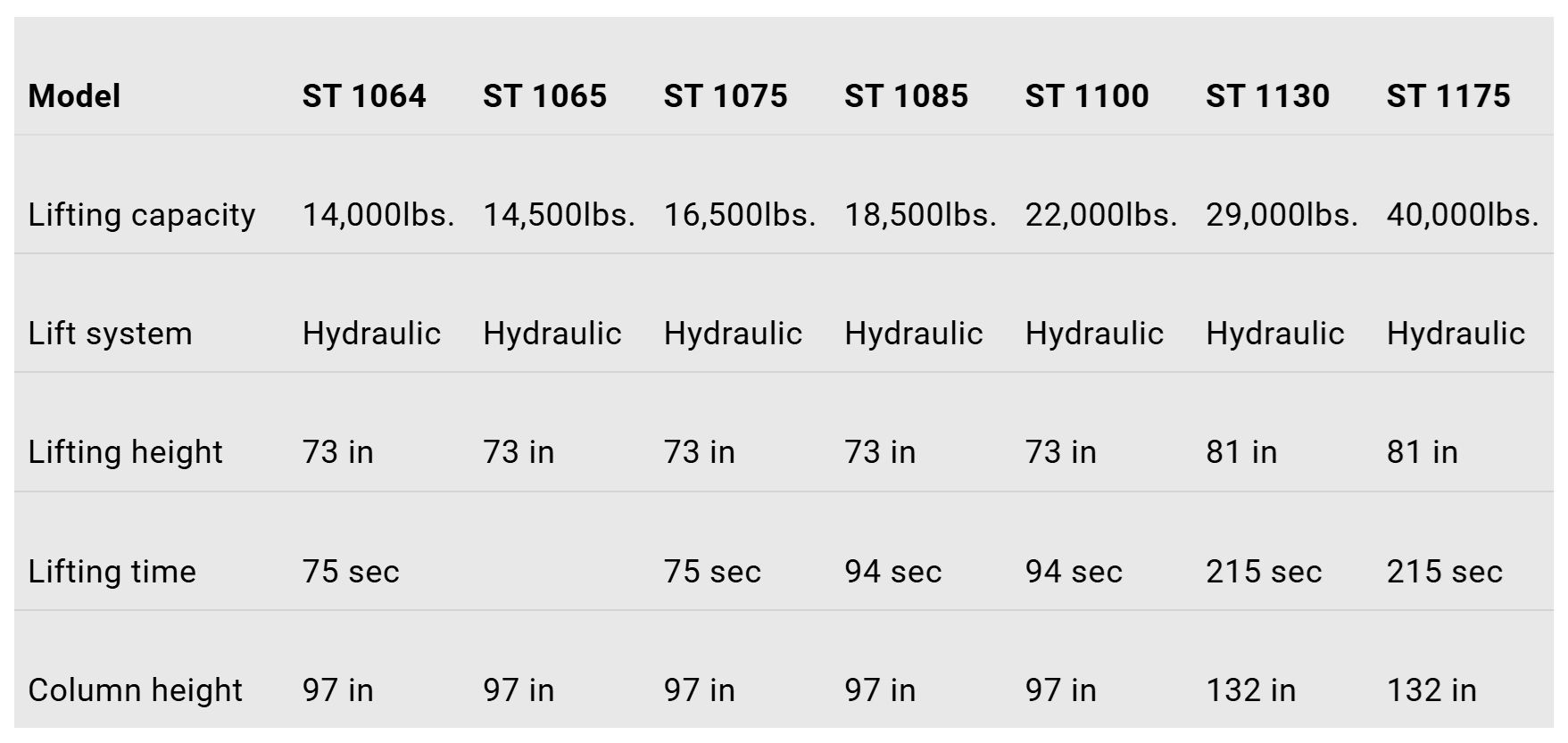

Download the product brochure to see the full specifications for the various mobile column types.
Description:
Mobile Column Lifts from Stertil-Koni allow you to safely lift a wide range of HD vehicles quickly and efficiently. From delivery vans and pumper trucks to school buses and fire engines, from agricultural vehicles and airport tugs to class 8 tractor trailers and utility trucks, we lift them all. Lifting capacities range from 14,000 lbs to 40,000 lbs. per column. Portable lifts from Stertil-Koni are available in three versions: -Wireless Mobile Column Lifts -Cabled Mobile Column Lifts -EARTHLIFT (featured)
SkyLift
Specs:
Lifting Capacity: 62,400 or 78,000 LB.
Lifting System: Hydraulic
Lifting Height: 69" (1752.6mm)
Lifting Time: 90 Sec.
Available Platform Lengths: 23'-26'-30'-33' or 26'-30'-33'-40'-48'
Motor Capacity: 18 HP.
Description:
In the platform lift industry serving truck and bus fleets, the Stertil-Koni SKYLIFT has ushered in a significant revolution. Today, SKYLIFT is utilized by a broad range of satisfied customers around the world -- and it�s no wonder. This revolutionary lift concept combines the best properties of traditional platform lifts with important new advantages.
